Hamntorget, Stockholm

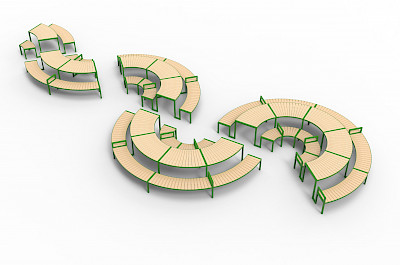

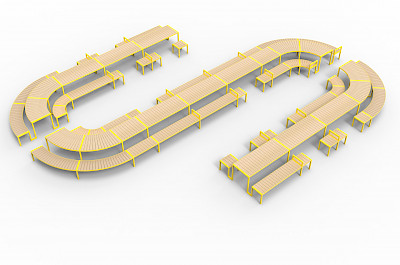

Långbordet is an expandable system able to follow pavement patterns, arc into circles or create curves. The benches attach to the table at ground level, ensuring that they remain in place at all times.

Långbordet picnic table 100 cm section + frames with and without armrests

Långbordet picnic table 140 cm section + frames with and without armrests

Långbordet picnic table 180 cm section + frames with and without armrests

Långbordet picnic table radius section + frames without armrests

Långbordet picnic table 180 cm section with laminate surfaces and printed games, wide range of colours and print available

Långbordet picnic table

Modular Furniture System

Design White Arkitekter

Långbordet picnic table was created for connecting spaces and people. The table and seats adapt easily to different types of environments, where they can provide space for community meals, leisure activities and youth to hang out. The system is expandable, able to follow pavement patterns, extend lengthways, arc into circles, or create curving shapes. The benches attach to the table at ground level, ensuring that they remain in place at all times. The gaps between individual benches provide spaces for wheelchair users and access points where those who may be less able can be seated.

See an overview of the Långbordet system!

Climate footprint

198,92 kg CO₂

Certification

Features

Designed for accessibility

Awards

The Monocle Design Awards 2021 Best Public Furniture Hamntorget Stockholm

Save favourite

Print product sheet

Assembly instructions

System description

Långbordet 2D-DWG files

EPD

Open in BIM object

Download images

195cm

75cm

Length: 100 cm / 140 cm / 180 cm
Width: 75 cm
Height: 75 cm
Sitting height: 45 cm
Depth: 195 cm

Standard lengths: 100 cm, 140 cm and 180 cm
Radius table length: 187 cm
Radius bench table angle: 45°
For table lengths 140 cm and 180 cm, the benches can be supplied whole or divided into two separate single lengths.
When paired with a divided bench, the 180 cm table has a 90 cm wide space for wheelchair access.

Height of seat: 45 cm
Depth of seat: 45 cm
Height of table: 75 cm
Depth of of table: 75 cm
Total depth: 195 cm
Length: 100 cm, 140 cm, 180 cm
Length 187.5 cm (Radius table)

Weights
End section: 20 kg
Bench table 100: 76 kg
Bench table  140: 94 kg
Bench table  180: 114 kg
Radius Bench table : 84 kg

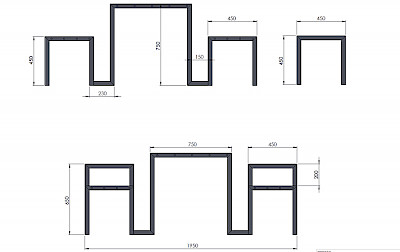

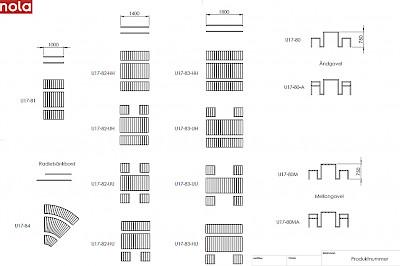

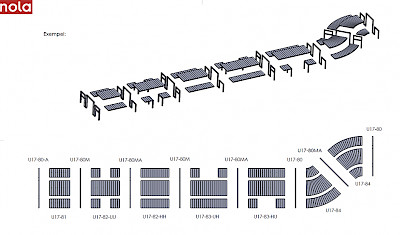

U17-80Långbordet picnic table, end frame without armrests

U17-80ALångbordet picnic table, end frame with armrests

U17-80MLångbordet picnic table, middle frame without armrests

U17-80MALångbordet picnic table, middle frame with armrests

U17-81Långbordet picnic table, 100 cm section, complete bench + table + complete bench

U17-82-HHLångbordet picnic table, 140 cm section, complete bench + table + complete bench

U17-82-UHLångbordet picnic table, 140 cm section, divided bench + table + complete bench

U17-82-UULångbordet picnic table, 140 cm section, divided bench + table + divided bench

U17-83-HHLångbordet picnic table, 180 cm section, complete bench + table + complete bench

U17-83-UHLångbordet picnic table, 180 cm section, divided bench + table + complete bench, 1 wheelchair space

U17-83-UULångbordet picnic table, 180 cm section, divided bench + table + divided bench, 2 wheelchair spaces

U17-84-RLångbordet picnic table, radius section 45°, left/right

U17-81-H/RyggLångbordet backrest 100 cm

U17-82-H/RyggLångbordet backrest 140 cm

U17-83-H/RyggLångbordet backrest 180 cm

U17-83-U/RyggLångbordet split backrest (2 pcs)

U17-80-DLLångbordet table spacers (2 pcs)

U17-80-DKLångbordet bench spacers (2 pcs)

U17-80BESLAGLångbordet fastening fittings, sold individually

B11-06Additional fee for choosing a non-standard colour

Append to product number

Wood and finish

SIOO for sioo:x treatment oak.
EK for oiled oak.
LIN for linax impregnated pine.
MH for oiled mahogany.

Metal surface finish

RAL 2001
RAL 9005
RAL 9010
C for any color other than standard, start-up costs are added.

RAL 9005

RAL 9010

RAL 2001

Oiled oak

Linax impregnated natural

Oiled mahogany

Pine

Nola's pine is of high quality and comes from sustainable forestry. Pine is an environmentally friendly, domestically produced material. Damaged or untreated pine is quite easily attacked by decomposition processes; therefore, it is particularly important to repair damaged surfaces.

Mahogany - FSC-certified

FSC-marked mahogany is a wood with good durability in the outdoor environment. In addition, it retains its color tone better than, for example, oak and teak. Mahogany lives and moves, sometimes more than teak.

Oak

Oak is a heavy, hard and medium tough wood. Moderately dimensionally stable in case of moisture changes. Oak wood blackens if it is exposed to moisture or wetness for a long time. However, it does not affect the other properties of the wood. Thanks to its hardness and toughness, the oak wood is suitable for furniture and other use in exposed environments.

Steel

Nola uses high-quality steel with good strength in our products. Steel rusts if left untreated and must therefore be surface treated.

Wood oil

Wood oil provides good protection against the stresses of the outdoor climate and at the same time highlights the wood's natural appearance and properties.

Linax

After traditional impregnation according to NTR AB, the wood is boiled in a hot linseed oil with or without color pigments under vacuum. The oil is penetrated into the surface on all six sides, which reduces moisture absorption in the wood and gives a dimensionally stable product over time. The result is a dried product with good resistance to rot that also has long maintenance intervals. Linax-impregnated furniture is intended for outdoor environments only.

SiOO:X treatment

Sioo:x is a wood protection with environmentally friendly silicon technology. Water-based and biocide-free. We use Sioo mainly for our oak furniture. Sioo:x treatment of is suitable for all woods, outside as well as inside, and gives a light surface without pigments. The surface is UV-resistant, water-repellent and non-stick. Active and preventive action against algae, mould and pests. Also rot-proof, wood-strengthening and fire-retardant. This wood protection provides long durability and easy maintenance.

Powder coating

Powder coating is a coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint, powder coating is usually applied electrostatically and then cured under heat or with ultraviolet light. The result is an even, hard-wearing coloured surface with the desired gloss level.

The tables, benches and frames are supplied separately. The tables and benches bolt to the frames via their short sides, after which the end boards are attached to the table and benches.

Långbordet has adjustable feet, enabling it to be placed on uneven surfaces. Optional attachment brackets are available to bolt the legs to the underlying surface.

Steel can be repainted with alkyd paint if necessary. The oak should be oiled annually.

Oiled oak

Oiled oak should be oiled twice a year for best protection. Good maintenance can never completely prevent stains from occurring, but oak that is not maintained will turn blacker and turn gray faster, but it still has a very long life. When re-oiling products, a finely boiled oil that penetrates the wood should be chosen over a film-forming oil.

Oiled mahogany

Oiled mahogany should be oiled two times a year.

Linax impregnated pine

Linax is a linseed oil-based impregnation that provides extra long durability in outdoor environments and corresponds to impregnation class AB. The impregnated wood turns gray over time, which means that it should be re-oiled if necessary. Use a linseed-based oil for impregnated materials.

SiOO:X treatment oak

Sioo:x-treated products are treated twice upon delivery; once with a wood protection (Premium Träskydd Altan) and once with a surface protection (Premium Ytskydd Altan). After 12 - 18 months, for best durability, the surface should be treated once more with Sioo:x Premium Ytskydd Altan. It is important to keep the product clean, otherwise the surface protection can be destroyed. Products that are exposed to heavy mechanical wear may need extra treatments.The surface treatment has a tested effect according to the standards EN 46 and EN 113.

For information about the Sioo treatment see the website www.sioox.se.

Powdercoated steel

Products that are powder-coated can be touch-up painted with alkyd paint.

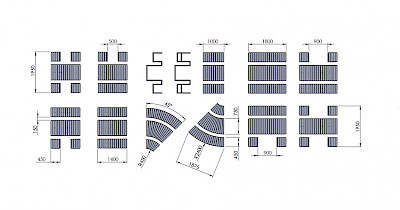

Available in standard lengths: 100 cm, 140 cm and 180 cm with a Radius bench table with 45° angles.
For the 140 cm and 180 cm tables, the benches can be supplied whole or divided into two separate lengths. When the divided bench is paired with the 180 cm table it provides a 90 cm space for wheelchair access.

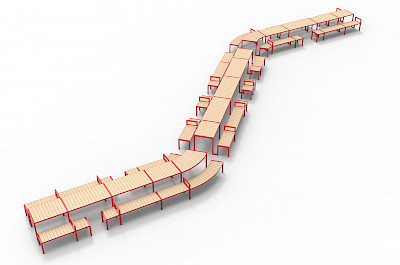

A dynamic, modular bench table system that can be extended lengthways or create circular shapes and curves. The system is wheelchair accessible.

CO₂-eq: 198,92 kg CO₂
Energy consumption: 4898,36 MJ
Recycled materials: 12,05 %

View EPD for details

Långbordet picnic table

Modular Furniture System

Design White Arkitekter

See an overview of the Långbordet system!

Climate footprint

198,92 kg CO₂

Certification

Features

Designed for accessibility

Awards

The Monocle Design Awards 2021 Best Public Furniture Hamntorget Stockholm

Save favourite

Print product sheet

Assembly instructions

System description

Långbordet 2D-DWG files

EPD

Open in BIM object

Download images

Hamntorget, Södermalm, Stockholm. Foto: Jann Lipka.

Projects

Hamntorget, Stockholm

Hamntorget – a new social meeting place along Årstaviken promenade in Södermalm, Stockholm. Architecture: White Architects.

Hamntorget, Stockholm

Hamntorget – a new social meeting place along Årstaviken promenade in Södermalm, Stockholm. Architecture: White Architects.

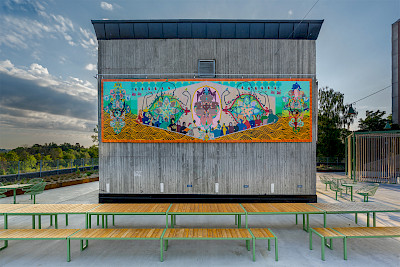

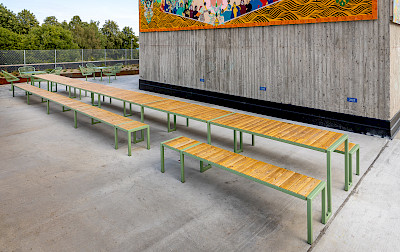

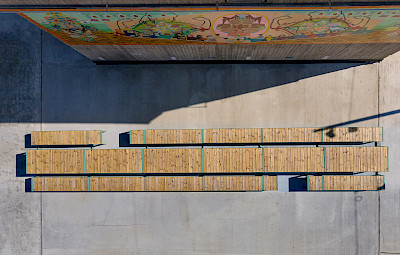

Urban Park, Fittja

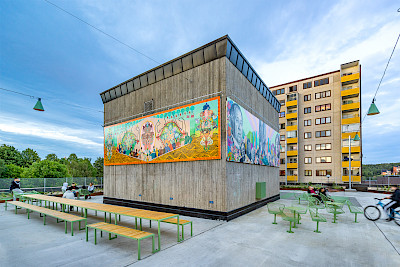

A former car park has been refurbished and transformed into a social and safe meeting place for residents in Fittja. Architecture: Arkitema.

Urban Park, Fittja

A former car park has been refurbished and transformed into a social and safe meeting place for residents in Fittja. Architecture: Arkitema.

Torsgatan, Stockholm

A courtyard on Torsgatan, Stockholm, behind the Stockholm Vatten-building from 1906, has been designed with activity, recreation and social interactions in mind.

Torsgatan, Stockholm

A courtyard on Torsgatan, Stockholm, behind the Stockholm Vatten-building from 1906, has been designed with activity, recreation and social interactions in mind.

Se alla projekt

Designers

White Arkitekter

White Arkitekter is one of Sweden’s leading architectural offices. With a focus on sustainable architecture, design and city planning, they aim to work for both the current and future generation. White Arkitekter’s aim is to through architecture be able to drive the transition towards a sustainable life.
