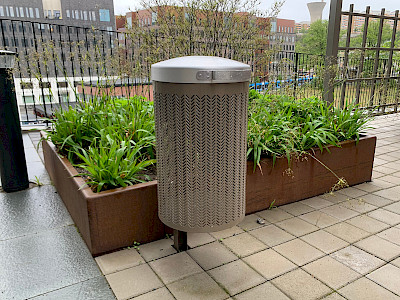

The ZigZag litterbin shown with lid and ashtray.

ZigZag litterbin

Eva Herdin

A zigzag is a dynamic design motif; it is the symbol for lightning and a means of representing movement on two-dimensional surfaces. The sides of the ZigZag litterbin are perforated with a repeating pattern of zigzag shapes, making it as lightweight as it is attractive. ZigZag corresponds to designs such as Kvadrat and can be paired with the ZigZag ashtray, giving it a wide range of combination possibilities.

Dimensions
Diameter: 33 cm
Height including lid: 54 cm
Height including post: 81 cm
Volume: 42 l
Weight including wall bracket: 12 kg
Weight including post for casting in concrete: 15 kg
Product number
Ö16-63 ZigZag litterbin concrete base for freestanding post. To be used together with pole with baseplate.
Ö16-63S/90 ZigZag litterbin hot-dip galvanised bracket for ø 90 mm post
Ö16-63S/108 ZigZag litterbin hot-dip galvanised bracket for ø 108 mm post
Ö16-63S/121 ZigZag litterbin hot-dip galvanised bracket for ø 121 mm post
Ö16-64 ZigZag litterbin w/ lid ashtray & attachable post
Ö16-64M ZigZag litterbin w/ lid & ashtray & post for casting in concrete
Ö16-64V ZigZag litterbin w/ lid wall-mounted version
Ö16-66 ZigZag litterbin w/ lid & ashtray & post for bolting to ground
Ö16-66M ZigZag litterbin w/ lid & ashtray & post for casting in concrete
Ö16-65 ZigZag litterbin without lid & ashtray & post for bolting to ground
Ö16-65M ZigZag litterbin without lid ashtray & post for casting in concrete
Ö16-67 ZigZag litterbin without lid & post for bolting to ground
Ö16-67M ZigZag litterbin & post for casting in concrete without lid
Ö16-67V ZigZag litterbin wall-mounted version without lid
Assembly
Fully assembled.
Variants
Available with a round opening or hinged lid, and can be combined with an ashtray. The litterbin is made in a wall-mounted version or supplied with an attachable post that fits into a freestanding concrete base or can be cast into concrete.
Materials
The container is made of perforated 2 mm sheet steel zinc-electroplated, chromed and polyester powder-coated in black RAL 9005. The inner container is made of stainless steel. The freestanding and attachable support posts and wall-hanging bracket are made of 3 mm sheet steel. The lid is made from anodised aluminium sheet that is 1.5 mm thick. The base is made of cast concrete.

Placement
The attachable version fastens to a post bolted to the floor. The bolt-holes have a diameter of 10 mm for 8 mm bolts. Bolts are not included.

The litterbin fastens to the post via two half-ring holes at the top and at the bottom for stainless steel nuts and bolts provided.

The post for the ground-mounted version is prepared for casting 40 cm into concrete.

The wall-mounted version bolts to the wall with wood screws or expander bolts depending on the material the wall is made of. The litterbin is prepared with bolt-holes that have a diameter of 7 mm for 6 mm bolts. Bolts are not included.

Please refer to the assembly instruction for specific details.

The ground-mounted version bolts to the floor with wood screws or expander bolts depending on the material the floor is made of. The base has been prepared with space for the bolt-heads and bolt-holes with a diameter of 10 mm for 8 mm bolts. Bolts are not included.
Maintenance
Scratches to polyester powder-coated steel can be repainted with alkyd oil enamel as needed.
Character
ZigZag is a low-profile, lightweight litterbin with a wide range of combination possibilities.
