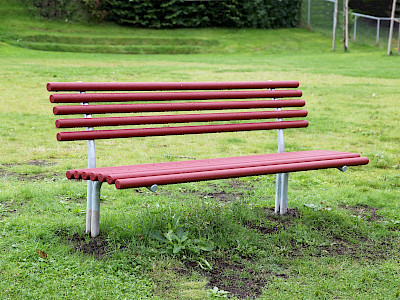

A Goal bench and backed bench. Design Thomas Bernstrand Goal  backed benches. Malmö Central station. Design Thomas Bernstrand Goal  benches, wal mounted. Malmö Central station. Design Thomas Bernstrand Goal backed benches in a red color. Design Thomas Bernstrand Th Goal furniture group. Design Thomas Bernstrand

Goal furniture group

Thomas Bernstrand

The Goal furniture group is crafted from reinforced fibre concrete surfaces and stainless steel runners, making it an ideal choice for outdoor environments, yet an attractive complement to hi-tech interiors too. Concrete is a favourite material for both architects and interior designers, used outdoors to build heavy structures and indoors to create sleek surfaces. Goal’s blend of untreated stainless steel and polished concrete give it an architectonic effect that mirrors the simplicity of many architectural styles.

Dimensions
RECTANGULAR TABLE Length: 150 cm Width: 78 cm Height: 72 cm Weight: 50 kg
ROUND TABLEDiameter: 70 cm Height: 70 cm Weight: 23.5 kg
PENTAGON TABLELength: 78 cm Width: 68 cm Height: 70 cm Weight: 23 kg
BENCHLength: 175 cm Depth: 45 cm Height: 46 cm Weight: 45 kg
BACKED BENCHLength: 175 cm Depth: 61 cm Seat height: 46 cm Height: 63 cm Weight: 45 kg

INDIVIDUAL DIMENSIONS
The pipe steel frame measures 38 mm × 2 mm
The tubular steel slats measure 30 mm × 2 mm with a diameter of 44 mm
The wooden slats measure 40 mm x 50 mm
Product number
U07-20 Goal backed bench without armrests
U07-21 Goal backed bench with armrests
U07-25 Goal backed bench without armrests
U07-26 Goal backed bench with armrests
U07-30 Goal backed bench without armrests VFZ green
U07-31 Goal backed bench with armrests VFZ green
U07-35 Goal backed bench, without armrests VFZ reddish-brown
U07-36 Goal backed bench with armrests VFZ reddish-brown
U07-39 Goal bench
U07-40 Ground fixings, set of 4 pcs
U07-42 Goal backed bench without armrest VFZ grey pine
U07-42 Ground fixings, set of 4 pcs
U07-43 Goal table rectangular
U07-44 Goal backed bench in grey-glazed pine
U07-46M Goal café table round. Attachable.
U07-47M Goal cafe-table pentagon. Attachable.

ADD A NCS CODE FOR YOUR CHOICE OF COLOUR
Slats in gray/green polyurethane: NCS S 7005- B80G
Slats in black polyurethane: NCS S 8000-N
Slats in green polyurethane: NCS S 8010-G10Y
Slats in red/brown polyurethane: NCS S 4550-Y80R
Assembly
The slats and frame are delivered in separate parts. The tables are delivered in separate parts.
Variants
The benches are available with a back or without, with armrests or without. The group includes tables in round, rectangular and pentagon shapes. A range of colour choices is available.
Materials
The bench frames are made in hot-dipped galvanised tubular steel. The slats are made in tubular steel and cast-polyurethane coated in PUR, or alternatively, in painted pine. The tabletops are made from concrete fibres in natural light grey colour or anthracite. The table frames are made from hot-dip galvanised tube steel with a diameter of 42 mm. The frame of the rectangular table is made from hot-dip galvanised tube steel with a diameter of 38 mm.
Additional description number
M = Attachable
F = Freestanding
MUR= walmounted
G = Uncoloured fibre concrete tabletop
A = anthracite-coloured fibre concrete tabletop
Placement
Freestanding, attachable or walmounted. The attachable version should be bolted to the surface with bolts M10. Bolts not included. Note that the café tables are freestanding and not attachable. Fittings for the benches and the rectangular table can be ordered.
Maintenance
Scratched steel can be treated with primer for galvanized metal. Although maintenance of the slats is not normally needed, cleaning with mild detergent is recommended.
Character
A furniture group crafted from reinforced fibre concrete surfaces and stainless steel runners, providing an attractive complement to outdoor settings and hi-tech interiors.
